  • TUNGALOY AVJNR2525M16-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

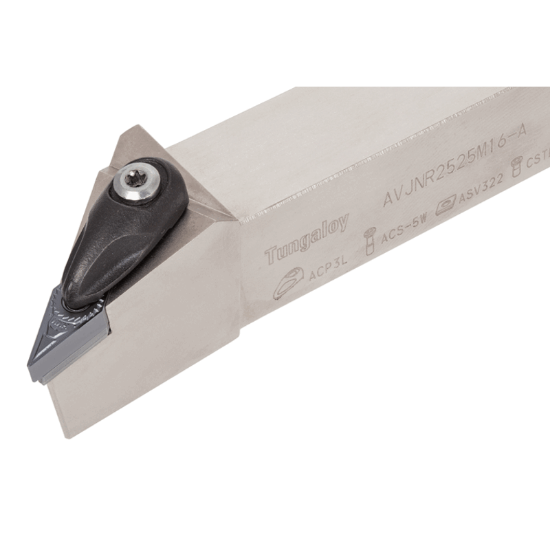

Picture of TUNGALOY AVJNR2525M16-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY AVJNR2525M16-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: AVJNR2525M16-A

ISO: AVJNR2525M16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852782
Delivery date: 3-5 days
$165.10

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative 35deg and 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 93°
Overall Len 5.9055 150.00MM
Clearance Angle 50.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
Inter/Extern External
