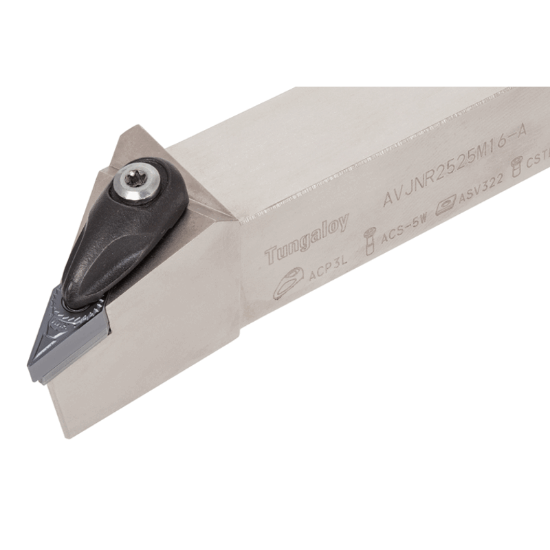

Picture of TUNGALOY AVJNR163-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY AVJNR163-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: AVJNR163-A

ISO: AVJNR163-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853135
Delivery date: 3-5 days
$165.10

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative 35deg and 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Clearance Angle 50.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Lead Angle 93°
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style VN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
