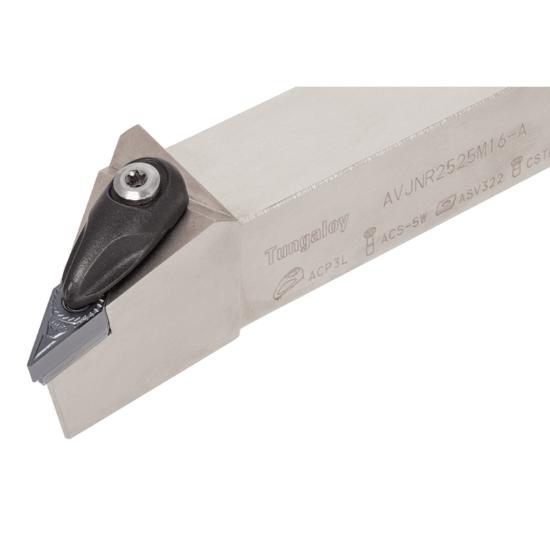

Picture of TUNGALOY AVJNR123-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY AVJNR123-A Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: AVJNR123-A

ISO: AVJNR123-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853131
Delivery date: 3-5 days
$162.15

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative 35deg and 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Clearance Angle 50.0°
Overall Len 4.5000 114.30MM
Insert Size Ic 16 "33"
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style VN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
