  • TUNGALOY ATQNR2020K16-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

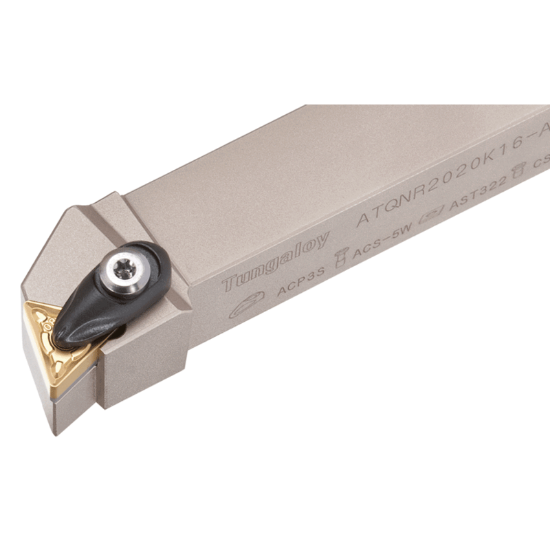

Picture of TUNGALOY ATQNR2020K16-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY ATQNR2020K16-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

ANSI: ATQNR2020K16-A

ISO: ATQNR2020K16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852814
Delivery date: 3-5 days
$116.10

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 105deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 16 "33"
Overall Len 4.9213 125.00MM
Lead Angle 105°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Hand R/L Right
Inter/Extern External
