  • TUNGALOY ATQNL2020K16-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

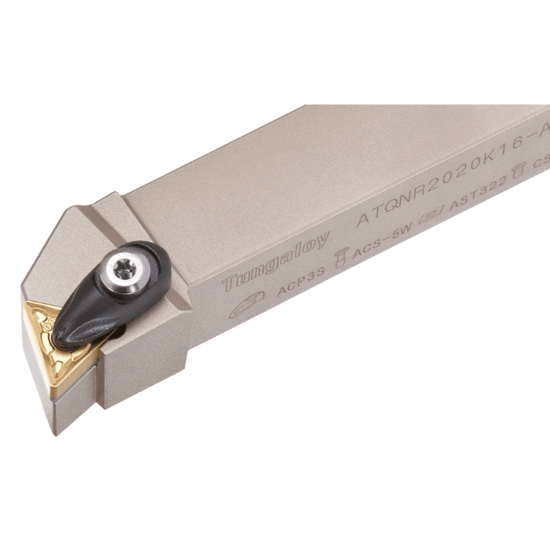

Picture of TUNGALOY ATQNL2020K16-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY ATQNL2020K16-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

ANSI: ATQNL2020K16-A

ISO: ATQNL2020K16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852813
Delivery date: 3-5 days
$116.10

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 105deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 105°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.9213 125.00MM
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Left
Insert Style TN
Inter/Extern External
