  • TUNGALOY ATQNL163-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 1.000 Shank

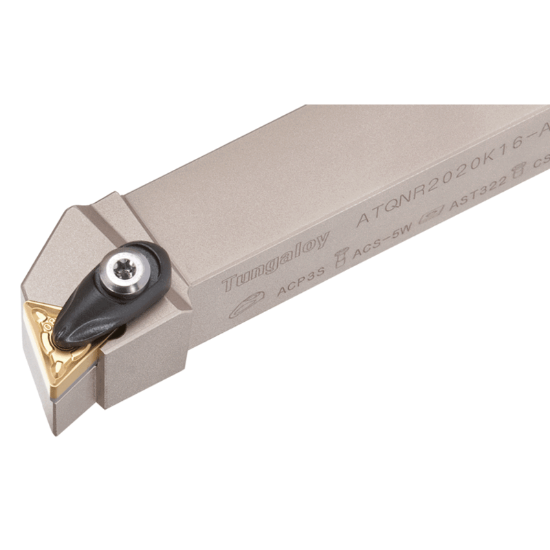

Picture of TUNGALOY ATQNL163-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 1.000 Shank

TUNGALOY ATQNL163-A Stick Tool Triangle Insert Neg,Q/H style, 45deg Approach , Steel Square 1.000 Shank

ANSI: ATQNL163-A

ISO: ATQNL163-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864818
Delivery date: 3-5 days
$128.05

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 105deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 105°
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style TN
Hand R/L Left
