  • TUNGALOY ATJNR2525M16-A Stick Tool Triangle Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

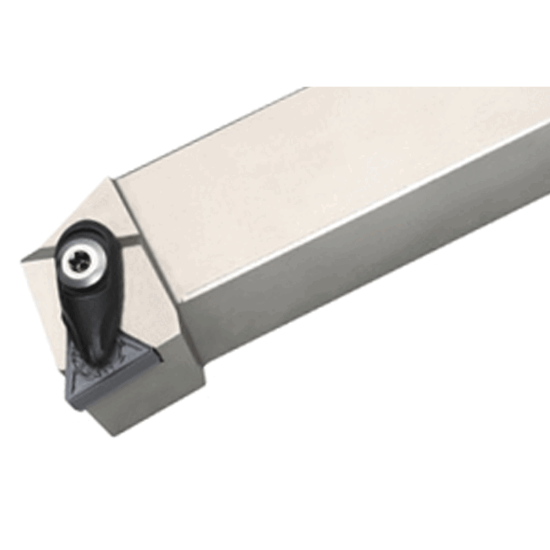

Picture of TUNGALOY ATJNR2525M16-A Stick Tool Triangle Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY ATJNR2525M16-A Stick Tool Triangle Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: ATJNR2525M16-A

ISO: ATJNR2525M16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852812
Delivery date: 3-5 days
$128.05

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Application Ext.Turning
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Clearance Angle 22.0°
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
