  • TUNGALOY ATJNL123-A Stick Tool Triangle Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

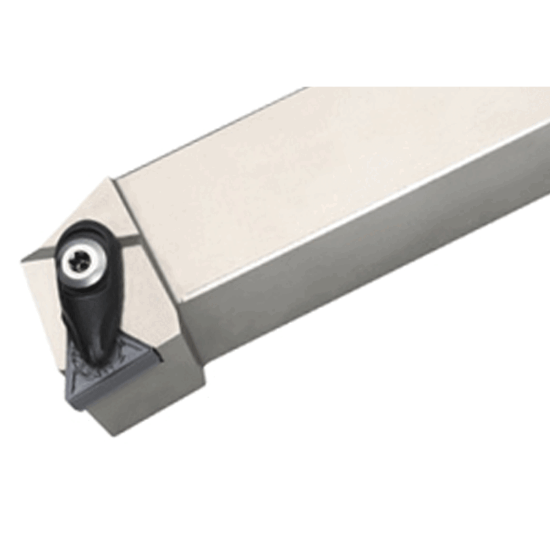

Picture of TUNGALOY ATJNL123-A Stick Tool Triangle Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY ATJNL123-A Stick Tool Triangle Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: ATJNL123-A

ISO: ATJNL123-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864727
Delivery date: 3-5 days
$116.10

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 16 "33"
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 22.0°
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
