  • TUNGALOY ATGNR164-A Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

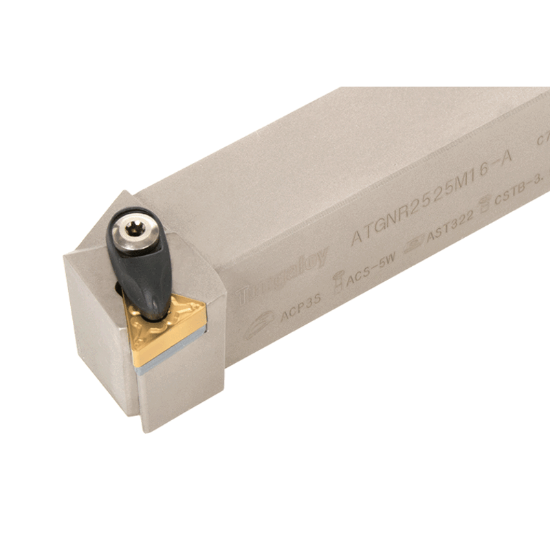

Picture of TUNGALOY ATGNR164-A Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

TUNGALOY ATGNR164-A Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

ANSI: ATGNR164-A

ISO: ATGNR164-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807855
Delivery date: 3-5 days
$128.05

Important Notes

Neg,G style, 91deg Approach

Details

Double-clamp toolholder with 91deg approach angle, for negative triangle inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 91°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 2204
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
