  • TUNGALOY ASSNR2525M12-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

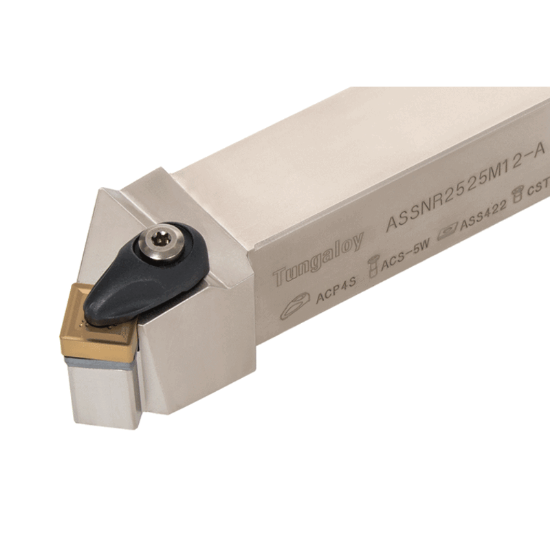

Picture of TUNGALOY ASSNR2525M12-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY ASSNR2525M12-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

ANSI: ASSNR2525M12-A

ISO: ASSNR2525M12-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852895
Delivery date: 3-5 days
$128.05

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 12 "43"
Clearance Angle 40.0°
Lead Angle 45°
Overall Len 5.9055 150.00MM
Tool Material Steel
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Style SN
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
