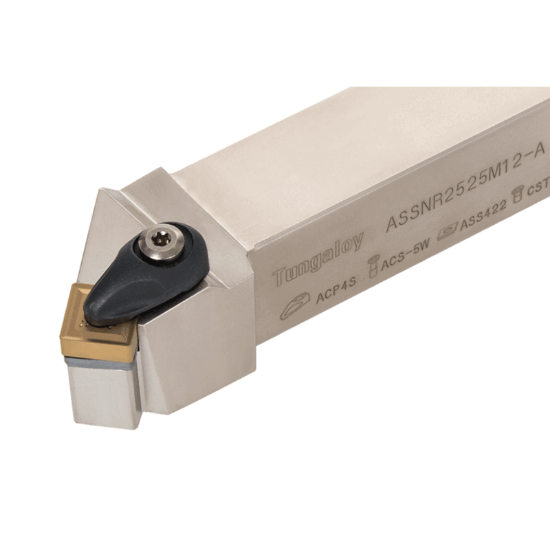

Picture of TUNGALOY ASSNR246-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.500 Shank

TUNGALOY ASSNR246-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.500 Shank

ANSI: ASSNR246-A

ISO: ASSNR246-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990770
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 19 "64"
Clearance Angle 40.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Lead Angle 45°
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
Hand R/L Right
