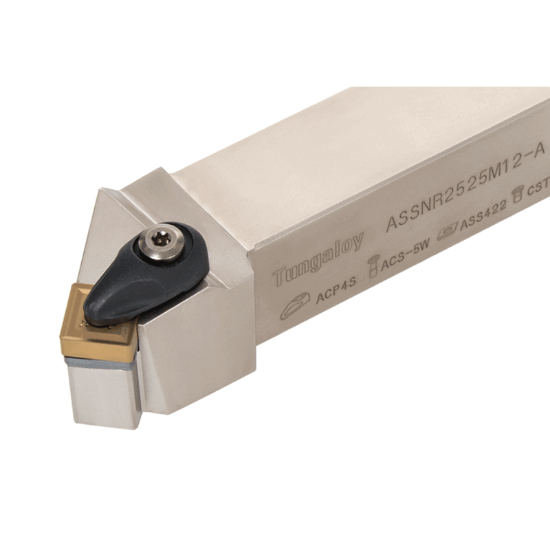

Picture of TUNGALOY ASSNR245-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.500 Shank

TUNGALOY ASSNR245-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.500 Shank

ANSI: ASSNR245-A

ISO: ASSNR245-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990766
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 45°
Insert Size Ic 16 "54"
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Hand R/L Right
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
