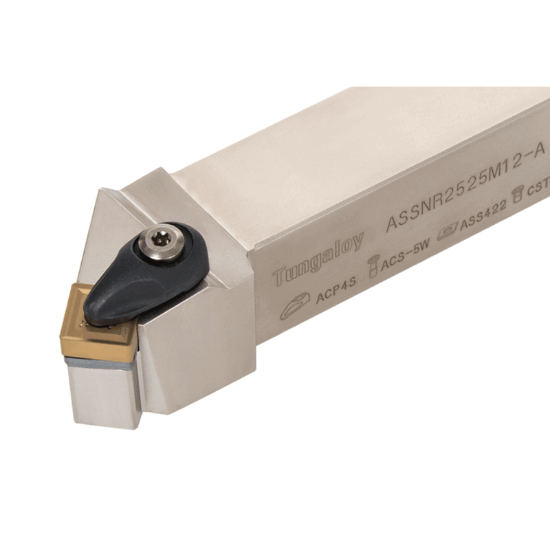

Picture of TUNGALOY ASSNR205-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.250 Shank

TUNGALOY ASSNR205-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.250 Shank

ANSI: ASSNR205-A

ISO: ASSNR205-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990764
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 7.0000 177.80MM
Insert Size Ic 16 "54"
Lead Angle 45°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
