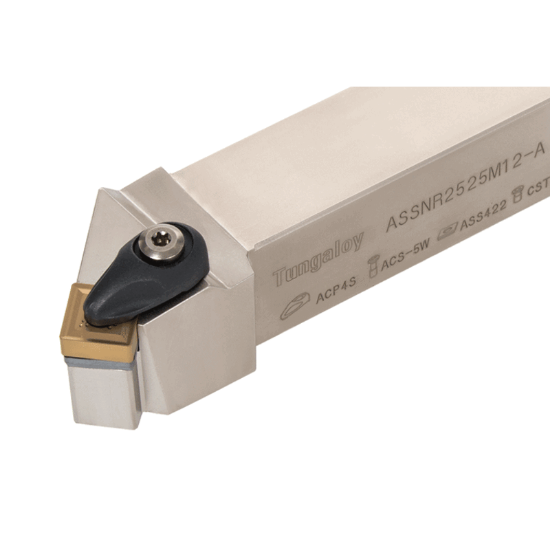

Picture of TUNGALOY ASSNR164-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.000 Shank

TUNGALOY ASSNR164-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.000 Shank

ANSI: ASSNR164-A

ISO: ASSNR164-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853116
Delivery date: 3-5 days
$128.05

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 45°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 12 "43"
Clearance Angle 40.0°
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
Insert Style SN
