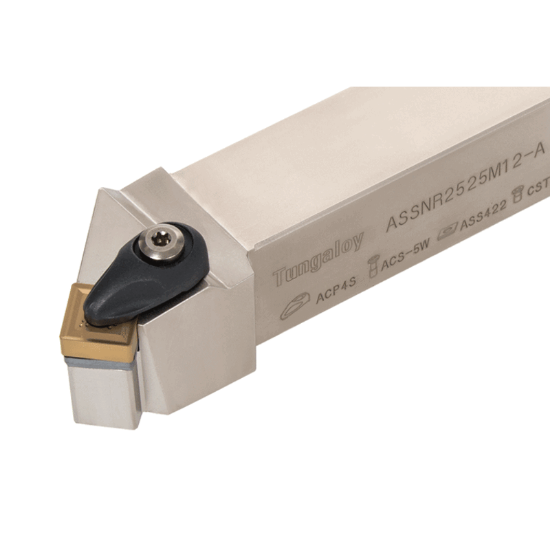

Picture of TUNGALOY ASSNR124-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.750 Shank

TUNGALOY ASSNR124-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.750 Shank

ANSI: ASSNR124-A

ISO: ASSNR124-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853112
Delivery date: 3-5 days
$116.10

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Dimensional Specifications
Insert Size Ic 12 "43"
Lead Angle 45°
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 40.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Inter/Extern External
