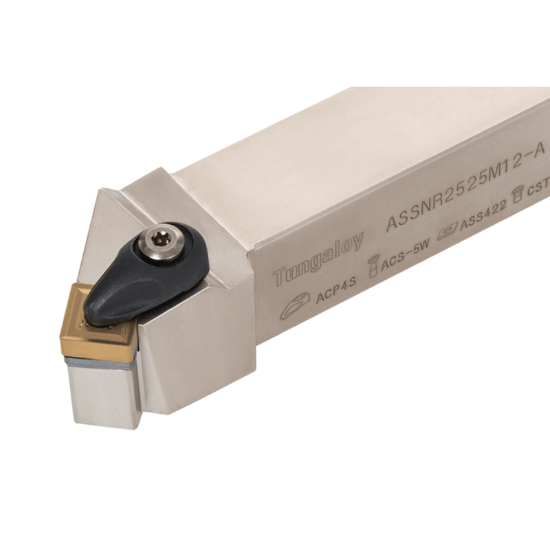

Picture of TUNGALOY ASSNL246-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.500 Shank

TUNGALOY ASSNL246-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 1.500 Shank

ANSI: ASSNL246-A

ISO: ASSNL246-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990771
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Clearance Angle 40.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Lead Angle 45°
Machine Side Connection Type Stick Tool
Insert Size Ic 19 "64"
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Inter/Extern External
