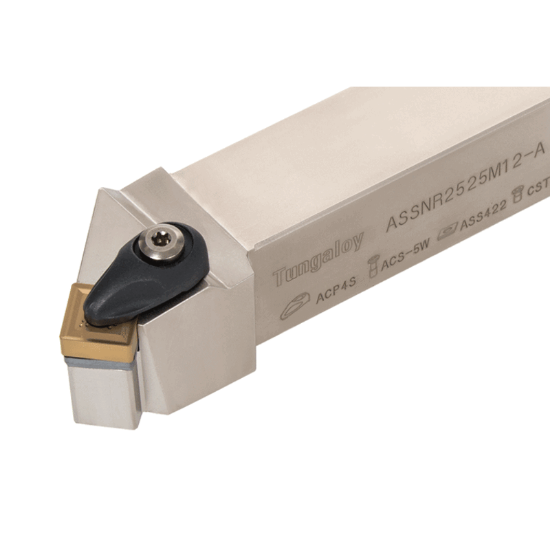

Picture of TUNGALOY ASSNL124-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.750 Shank

TUNGALOY ASSNL124-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.750 Shank

ANSI: ASSNL124-A

ISO: ASSNL124-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853111
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Machine Side Connection Size 0.7500 19.05MM
Lead Angle 45°
Overall Len 4.5000 114.30MM
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Inter/Extern External
