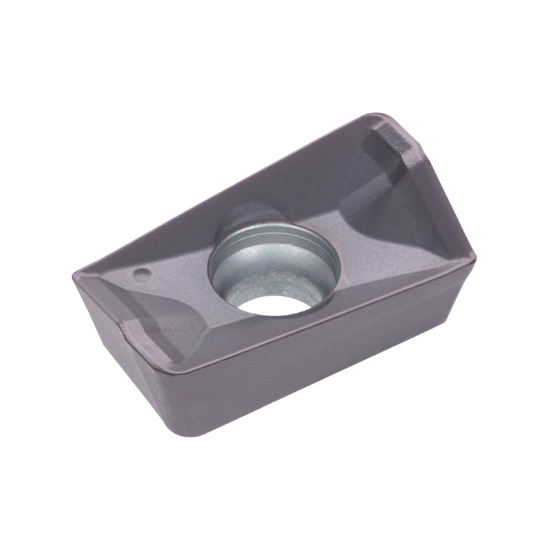

TUNGALOY ASMT11T308PDPR-MJ AH140 Milling Insert Paralelagram AlTiN Carbide 0.031 Corner Radius

ANSI: ASMT11T308PDPR-MJ AH140

ISO: ASMT11T308PDPR-MJ AH140

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6855383
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL

Grade and Coating Description

PVD Coated Grade for milling of stainless steels at low speeds.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Application Semi Finishing, Roughing
Grade AH140
Made In USA No
Insert/Tool Insert
Application Milling Insert
Coating AlTiN
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11
Depth Of Cut Max 0.4170
Corner Radius 0.0315 0.80MM
Cut Rating Stainless
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style AS
