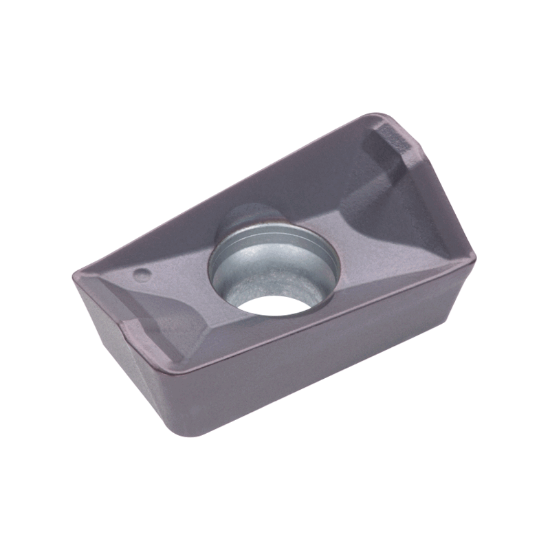

TUNGALOY ASMT11T308PDPR-MJ AH130 Milling Insert Paralelagram AlTiN Carbide 0.031 Corner Radius

ANSI: ASMT11T308PDPR-MJ AH130

ISO: ASMT11T308PDPR-MJ AH130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6854550
Delivery date: 3-5 days
$14.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL

Grade and Coating Description

PVD Coated Grade for Milling of stainless steels

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Grade AH130
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Coating AlTiN
Package Size 10
Dimensional Specifications
Insert Size Ic 11
Depth Of Cut Max 0.4170
Corner Radius 0.0315 0.80MM
Cut Rating <30HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Style AS
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
