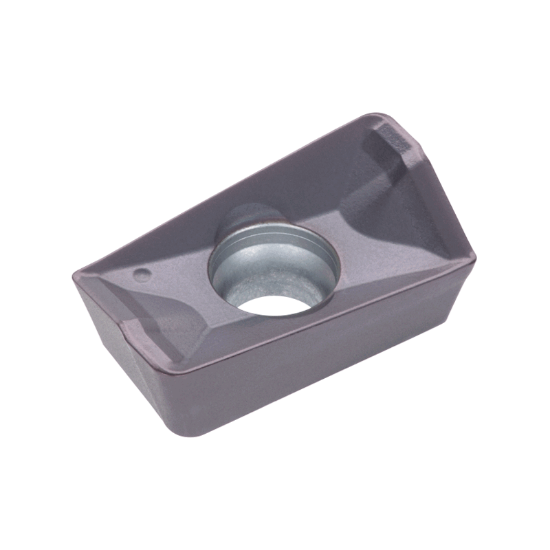

TUNGALOY ASMT11T304PDPR-MJ T1115 Milling Insert Paralelagram TiCN + Al2O3 Carbide 0.015 Corner Radius

ANSI: ASMT11T304PDPR-MJ T1115

ISO: ASMT11T304PDPR-MJ T1115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863781
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL

Grade and Coating Description

New CVD coated grade for milling gray cast irons & ductile cast irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 10
Insert Type Positive
Coating TiCN + Al2O3
Insert/Tool Insert
Application Milling Insert
Grade T1115
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11
Corner Radius 0.0157 0.40MM
Depth Of Cut Max 0.4170
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style AS
