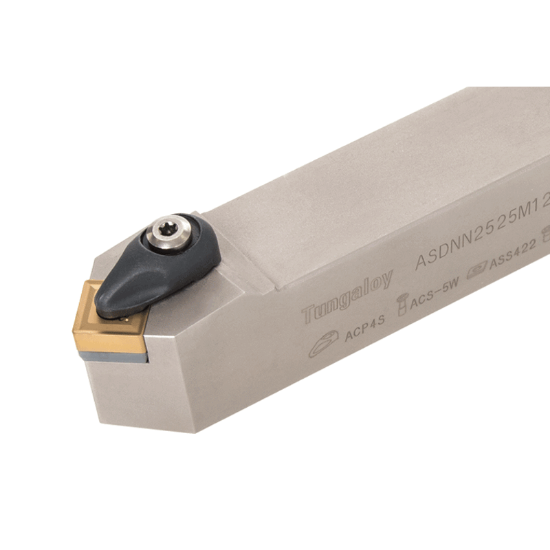

Picture of TUNGALOY ASDNN124-A Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.750 Shank

TUNGALOY ASDNN124-A Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.750 Shank

ANSI: ASDNN124-A

ISO: ASDNN124-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853109
Delivery date: 3-5 days
$116.10

Important Notes

Neg,D style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 40.0°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12 "43"
Lead Angle 45°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
Insert Style SN
Inter/Extern External
