  • TUNGALOY ASBNR206-A Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 1.250 Shank

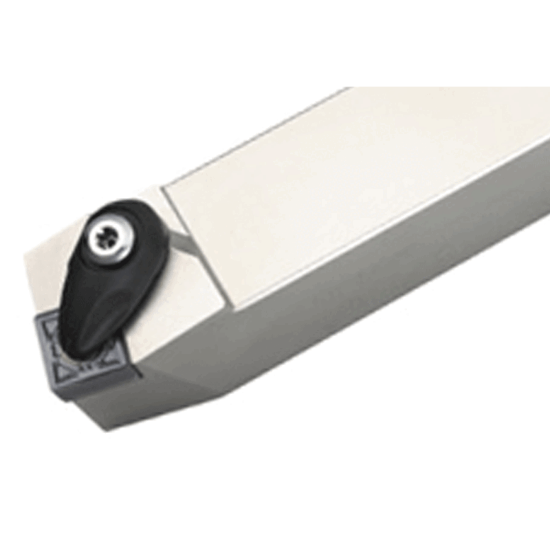

Picture of TUNGALOY ASBNR206-A Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 1.250 Shank

TUNGALOY ASBNR206-A Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 1.250 Shank

ANSI: ASBNR206-A

ISO: ASBNR206-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990760
Delivery date: 3-5 days
$192.05

Important Notes

Neg,B/R style, 75deg Approach

Details

Double-clamp toolholder with 75deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 10.0°
Insert Size Ic 19 "64"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Lead Angle 75°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SN
