  • TUNGALOY ASBNL246-A Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 1.500 Shank

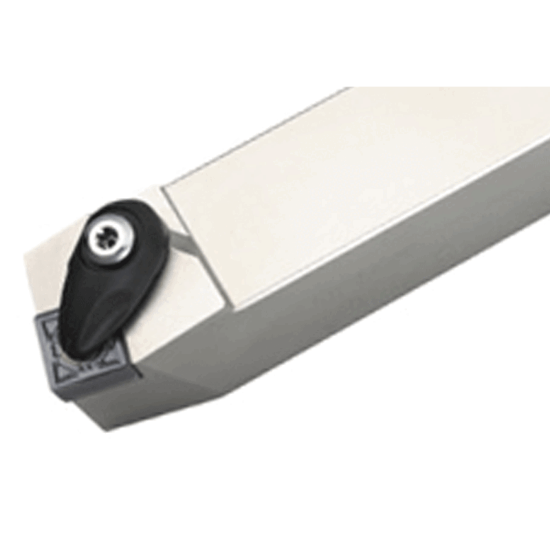

Picture of TUNGALOY ASBNL246-A Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 1.500 Shank

TUNGALOY ASBNL246-A Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 1.500 Shank

ANSI: ASBNL246-A

ISO: ASBNL246-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990763
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,B/R style, 75deg Approach

Details

Double-clamp toolholder with 75deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Lead Angle 75°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 19 "64"
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Clearance Angle 10.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Insert Style SN
