  • TUNGALOY ADQNL2525M15-A Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

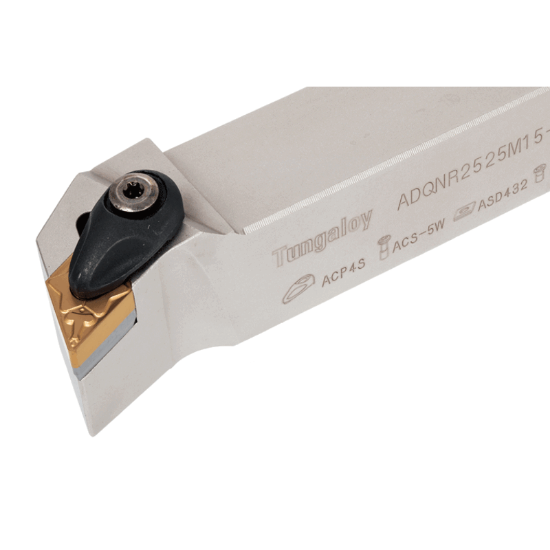

Picture of TUNGALOY ADQNL2525M15-A Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY ADQNL2525M15-A Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: ADQNL2525M15-A

ISO: ADQNL2525M15-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852791
Delivery date: 3-5 days
$165.10

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 12.5°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 12 "43"
Lead Angle 107.5°
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Hand R/L Left
