  • TUNGALOY ADPNN2020K15-A Stick Tool 55.0° Insert Neg,P style, 62.5deg Approach , Steel Square 0.787 Shank

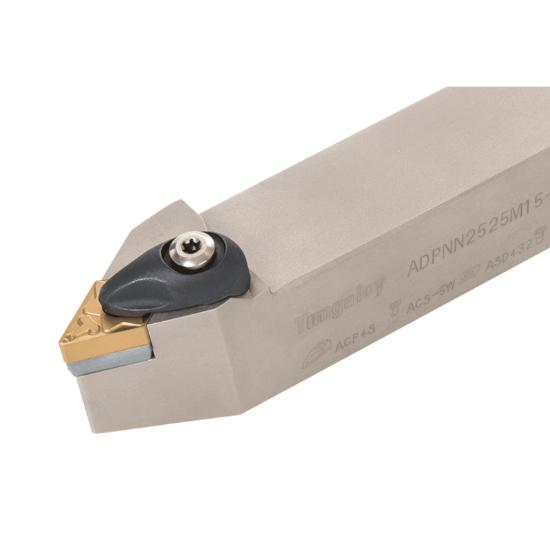

Picture of TUNGALOY ADPNN2020K15-A Stick Tool 55.0° Insert Neg,P style, 62.5deg Approach , Steel Square 0.787 Shank

TUNGALOY ADPNN2020K15-A Stick Tool 55.0° Insert Neg,P style, 62.5deg Approach , Steel Square 0.787 Shank

ANSI: ADPNN2020K15-A

ISO: ADPNN2020K15-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852795
Delivery date: 3-5 days
$116.10

Important Notes

Neg,P style, 62.5deg Approach

Details

Double-clamp toolholder with 62.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.9213 125.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7874 20.00MM
Lead Angle 62.5°
Clearance Angle 57.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Neutral
