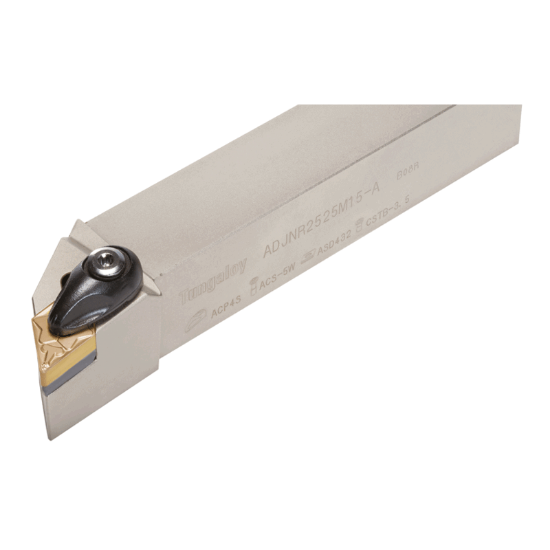

Picture of TUNGALOY ADJNR124-A Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY ADJNR124-A Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: ADJNR124-A

ISO: ADJNR124-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853104
Delivery date: 3-5 days
$116.10

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.9200 124.97MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12 "43"
Lead Angle 93°
Clearance Angle 27.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
