  • TUNGALOY ADJNL2525M1506-A Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

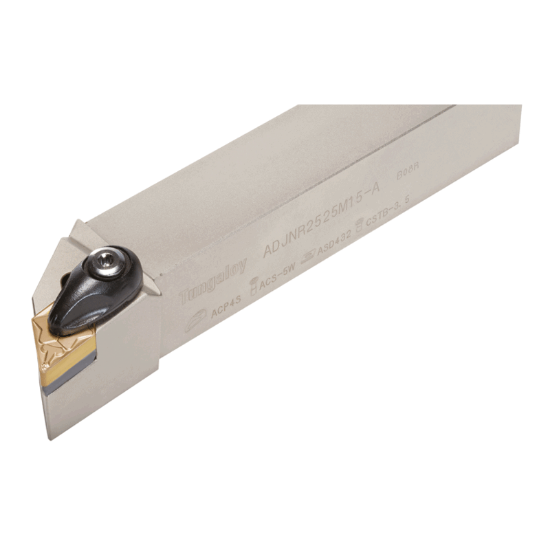

Picture of TUNGALOY ADJNL2525M1506-A Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY ADJNL2525M1506-A Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: ADJNL2525M1506-A

ISO: ADJNL2525M1506-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852888
Delivery date: 3-5 days
$128.05

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 27.0°
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 93°
Insert Size Ic 15 "44"
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
