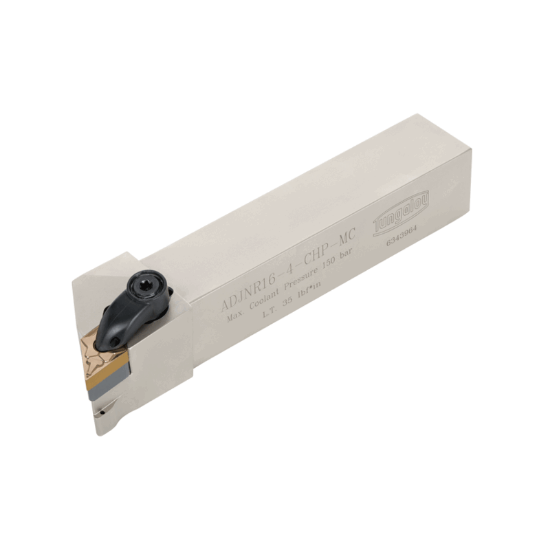

Picture of TUNGALOY ADJNL16-4-CHP-MC Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY ADJNL16-4-CHP-MC Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: ADJNL16-4-CHP-MC

ISO: ADJNL16-4-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346700
Delivery date: 3-5 days
$308.50

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholders with 93deg approach angle for negative 55deg rhombic inserts with high pressure coolant channels

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 27.0°
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Inter/Extern External
Insert Style DN
