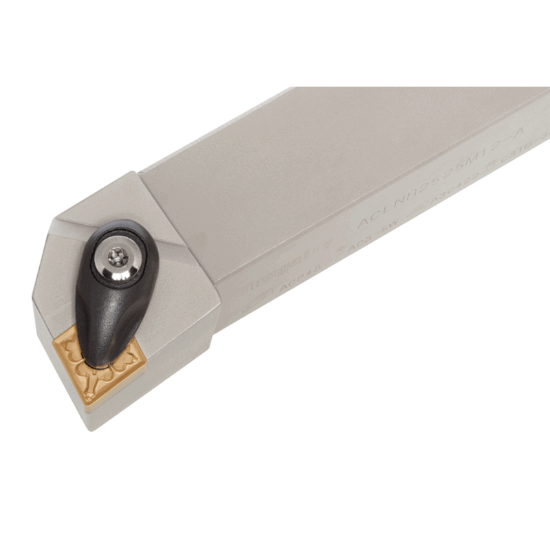

Picture of TUNGALOY ACLNR246-A Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 1.500 Shank

TUNGALOY ACLNR246-A Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 1.500 Shank

ANSI: ACLNR246-A

ISO: ACLNR246-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990754
Delivery date: 3-5 days
$333.25

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 95°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 19 "64"
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
