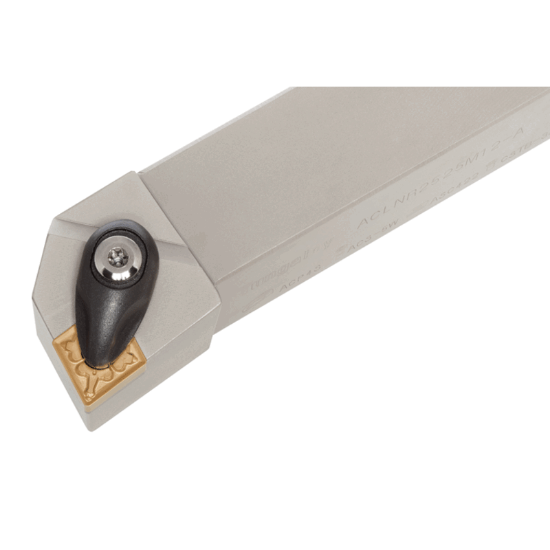

Picture of TUNGALOY ACLNR245-A Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 1.500 Shank

TUNGALOY ACLNR245-A Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 1.500 Shank

ANSI: ACLNR245-A

ISO: ACLNR245-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990750
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Lead Angle 95°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "54"
Tool Material Steel
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape 80.0°
