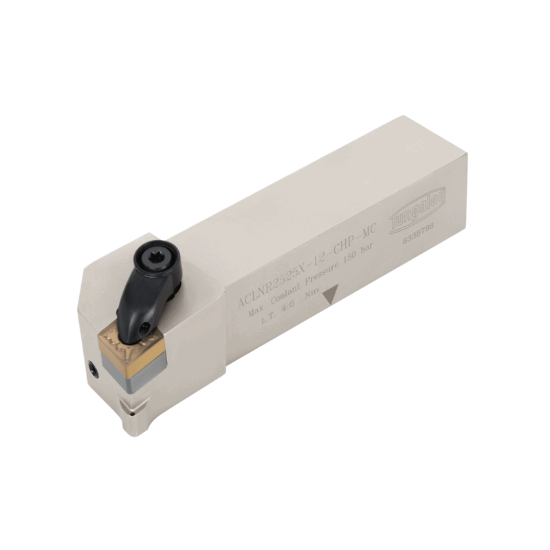

Picture of TUNGALOY ACLNR2020X-12-CHP-MC Stick Tool 80.0° Insert Steel Square 0.787 Shank

TUNGALOY ACLNR2020X-12-CHP-MC Stick Tool 80.0° Insert Steel Square 0.787 Shank

ANSI: ACLNR2020X-12-CHP-MC

ISO: ACLNR2020X-12-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346688
Delivery date: 3-5 days
$274.10

Details

Double-clamp toolholders with 95deg approach angle for negative 80deg rhombic inserts with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.1339 105.00MM
Lead Angle 95°
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
