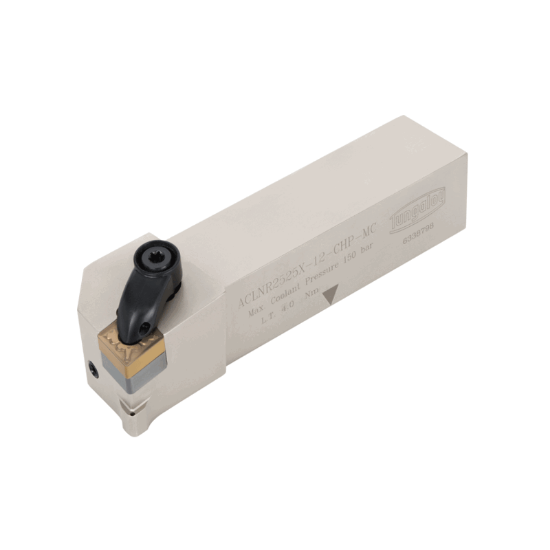

Picture of TUNGALOY ACLNR16-4-CHP-MC Stick Tool 80.0° Insert Steel Square 1.000 Shank

TUNGALOY ACLNR16-4-CHP-MC Stick Tool 80.0° Insert Steel Square 1.000 Shank

ANSI: ACLNR16-4-CHP-MC

ISO: ACLNR16-4-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346690
Delivery date: 3-5 days
$308.50

Details

Double-clamp toolholders with 95deg approach angle for negative 80deg rhombic inserts with high pressure coolant channels

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
