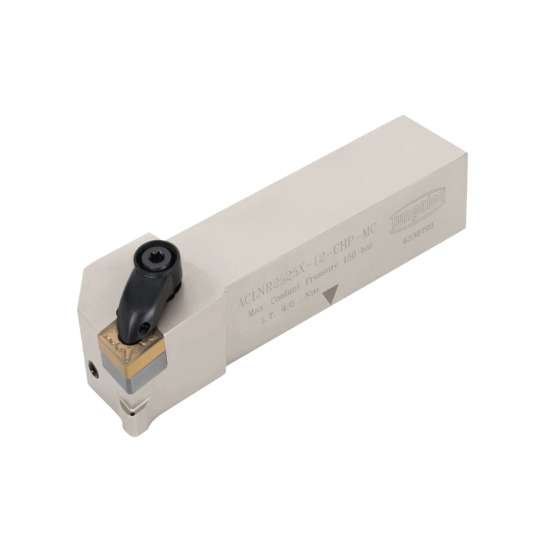

Picture of TUNGALOY ACLNL2525X-12-CHP-MC Stick Tool 80.0° Insert Steel Square 0.984 Shank

TUNGALOY ACLNL2525X-12-CHP-MC Stick Tool 80.0° Insert Steel Square 0.984 Shank

ANSI: ACLNL2525X-12-CHP-MC

ISO: ACLNL2525X-12-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3336572
Delivery date: 3-5 days
$308.50

Details

Double-clamp toolholders with 95deg approach angle for negative 80deg rhombic inserts with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
