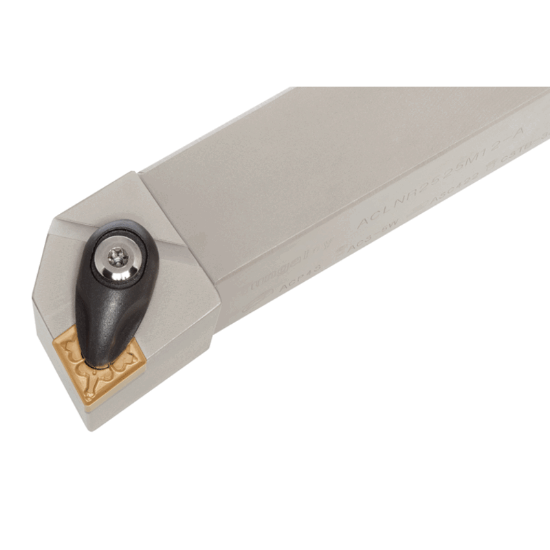

Picture of TUNGALOY ACLNL206-A Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 1.250 Shank

TUNGALOY ACLNL206-A Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 1.250 Shank

ANSI: ACLNL206-A

ISO: ACLNL206-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990753
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 19 "64"
Lead Angle 95°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
