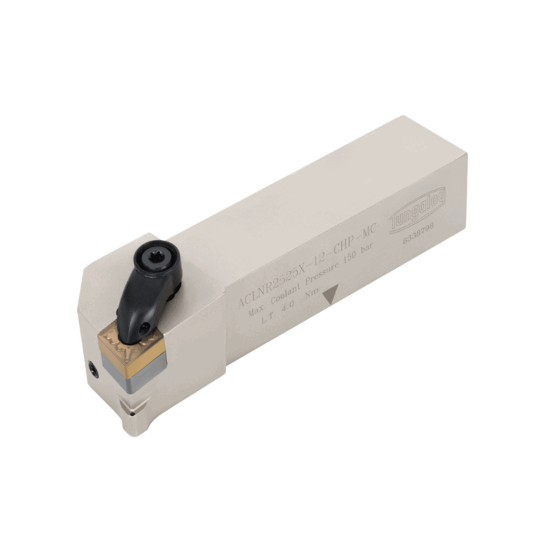

Picture of TUNGALOY ACLNL16-4-CHP-MC Stick Tool 80.0° Insert Steel Square 1.000 Shank

TUNGALOY ACLNL16-4-CHP-MC Stick Tool 80.0° Insert Steel Square 1.000 Shank

ANSI: ACLNL16-4-CHP-MC

ISO: ACLNL16-4-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346691
Delivery date: 3-5 days
$308.50

Details

Double-clamp toolholders with 95deg approach angle for negative 80deg rhombic inserts with high pressure coolant channels

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Application Ext.Turning
Dimensional Specifications
Insert Size Ic 12 "43"
Lead Angle 95°
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
