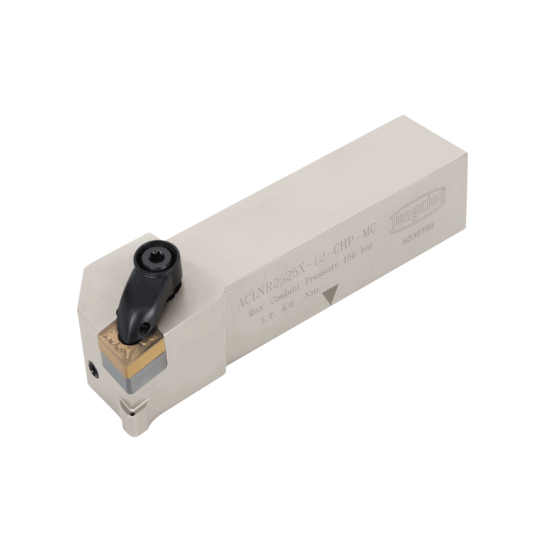

Picture of TUNGALOY ACLNL12-4-CHP-MC Stick Tool 80.0° Insert Steel Square 0.750 Shank

TUNGALOY ACLNL12-4-CHP-MC Stick Tool 80.0° Insert Steel Square 0.750 Shank

ANSI: ACLNL12-4-CHP-MC

ISO: ACLNL12-4-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346693
Delivery date: 3-5 days
$274.10

Details

Double-clamp toolholders with 95deg approach angle for negative 80deg rhombic inserts with high pressure coolant channels

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 95°
Insert Size Ic 12 "43"
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
