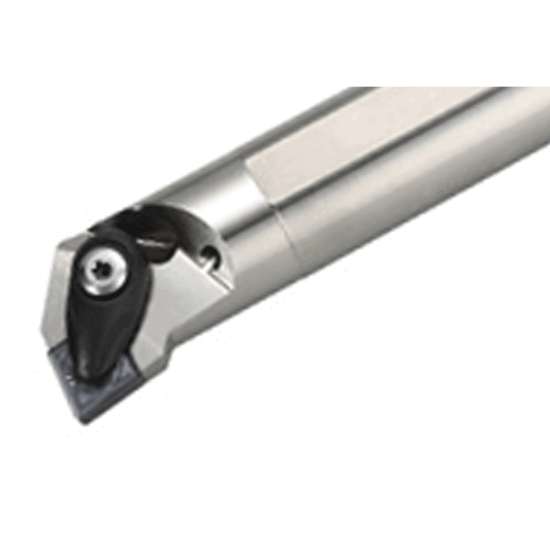

Picture of TUNGALOY A50U-ACLNR12-D630 Boring Bar 80.0° Insert Steel Round 1.968 Shank

TUNGALOY A50U-ACLNR12-D630 Boring Bar 80.0° Insert Steel Round 1.968 Shank

ANSI: A50U-ACLNR12-D630

ISO: A50U-ACLNR12-D630

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6854504
Delivery date: 3-5 days
$602.05

Details

Double-clamp boring bar, for negative 80deg rhombic insert

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Lead Angle 95°
Tool Material Steel
Insert Size Ic 12 "43"
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Min Bore 2.4803
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style CN
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
