  • TUNGALOY A32S-ADUNR15-D400 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 1.259 Shank

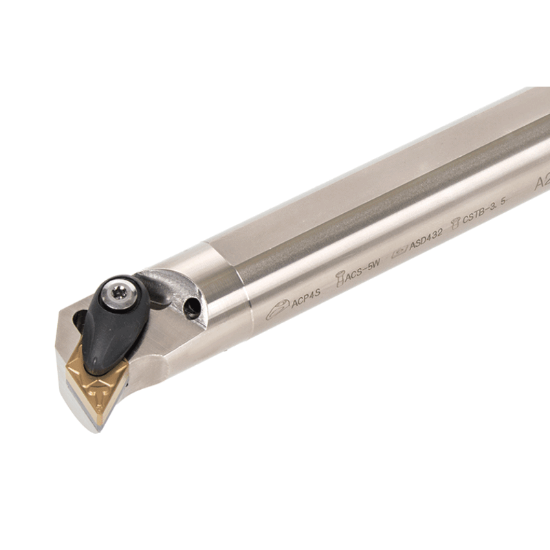

Picture of TUNGALOY A32S-ADUNR15-D400 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 1.259 Shank

TUNGALOY A32S-ADUNR15-D400 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 1.259 Shank

ANSI: A32S-ADUNR15-D400

ISO: A32S-ADUNR15-D400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852847
Delivery date: 3-5 days
$355.10

Important Notes

Neg,U style, 93deg Approach

Details

Double-clamp boring bar, for negative 55deg rhombic inserts.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Int.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93°
Machine Side Connection Type Cylindrical
Min Bore 1.5748
Tool Material Steel
Shank/Pilot Dia 1.2598 32.00MM
Insert Size Ic 12 "43"
Clearance Angle 20.0°
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
