  • TUNGALOY A25R-PDUNR11-D320 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 0.984 Shank

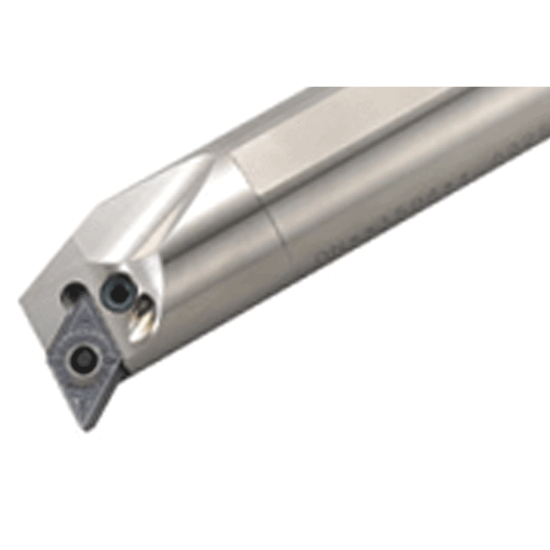

Picture of TUNGALOY A25R-PDUNR11-D320 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 0.984 Shank

TUNGALOY A25R-PDUNR11-D320 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 0.984 Shank

ANSI: A25R-PDUNR11-D320

ISO: A25R-PDUNR11-D320

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6855910
Delivery date: 3-5 days
$360.75

Important Notes

Neg,U style, 93deg Approach

Details

Lever-lock boring bars for Negative 55 deg rhombic insert

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Clearance Angle 20.0°
Insert Size Ic 11 "33"
Machine Side Connection Type Boring Bar
Min Bore 1.2598
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern Internal
Insert Style DN
