  • TUNGALOY A20R-SDXXL07-D240 Boring Bar 55.0° Insert Posi,X style, 100deg Approach , Steel Round 0.787 Shank

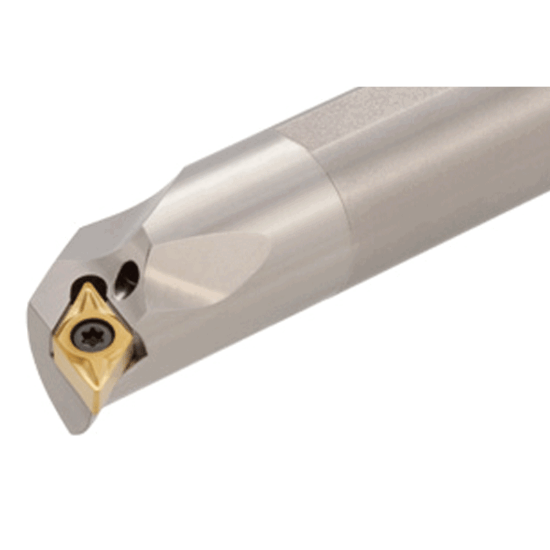

Picture of TUNGALOY A20R-SDXXL07-D240 Boring Bar 55.0° Insert Posi,X style, 100deg Approach , Steel Round 0.787 Shank

TUNGALOY A20R-SDXXL07-D240 Boring Bar 55.0° Insert Posi,X style, 100deg Approach , Steel Round 0.787 Shank

ANSI: A20R-SDXXL07-D240

ISO: A20R-SDXXL07-D240

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6989912
Delivery date: 3-5 days
$231.40

Important Notes

Posi,X style, 100deg Approach

Details

Screw-on boring bars for 55deg rhombic insert with 4 edges

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Clearance Angle 15.5°
Lead Angle 100°
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 07 "22"
Tool Material Steel
Machine Side Connection Type Boring Bar
Min Bore 0.9449
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DX
