  • TUNGALOY A20-AVUNL3-D25 Boring Bar 35.0° Insert Neg,U style, 93deg Approach , Steel Round 1.250 Shank

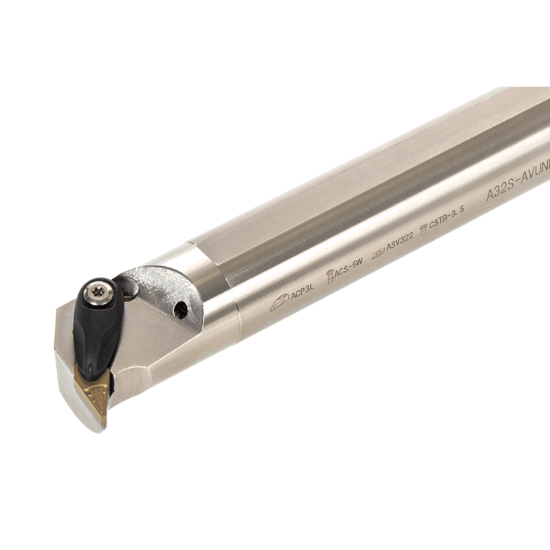

Picture of TUNGALOY A20-AVUNL3-D25 Boring Bar 35.0° Insert Neg,U style, 93deg Approach , Steel Round 1.250 Shank

TUNGALOY A20-AVUNL3-D25 Boring Bar 35.0° Insert Neg,U style, 93deg Approach , Steel Round 1.250 Shank

ANSI: A20-AVUNL3-D25

ISO: A20-AVUNL3-D25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864375
Delivery date: 3-5 days
$355.10

Important Notes

Neg,U style, 93deg Approach

Details

Double-clamp boring bar, for negative 35deg rhombic inserts.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 16 "33"
Lead Angle 93°
Clearance Angle 50.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Min Bore 1.5600
Cutting & Machining Properties
Inter/Extern Internal
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
