  • TUNGALOY A20-ADUNL4-D25 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 1.250 Shank

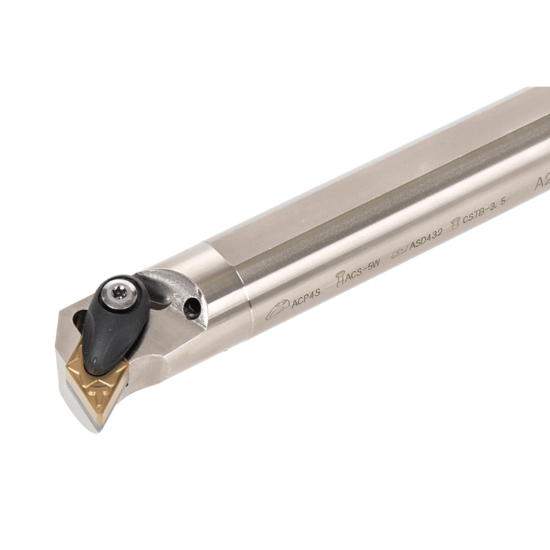

Picture of TUNGALOY A20-ADUNL4-D25 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 1.250 Shank

TUNGALOY A20-ADUNL4-D25 Boring Bar 55.0° Insert Neg,U style, 93deg Approach , Steel Round 1.250 Shank

ANSI: A20-ADUNL4-D25

ISO: A20-ADUNL4-D25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864503
Delivery date: 3-5 days
$355.10

Important Notes

Neg,U style, 93deg Approach

Details

Double-clamp boring bar, for negative 55deg rhombic inserts.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Int.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 93°
Insert Size Ic 12 "43"
Clearance Angle 20.0°
Min Bore 1.5000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern Internal
