  • TUNGALOY A16Q-STFCR1103-D180 Boring Bar Triangle Insert Posi,F style, 91deg Approach , Steel Round 0.629 Shank

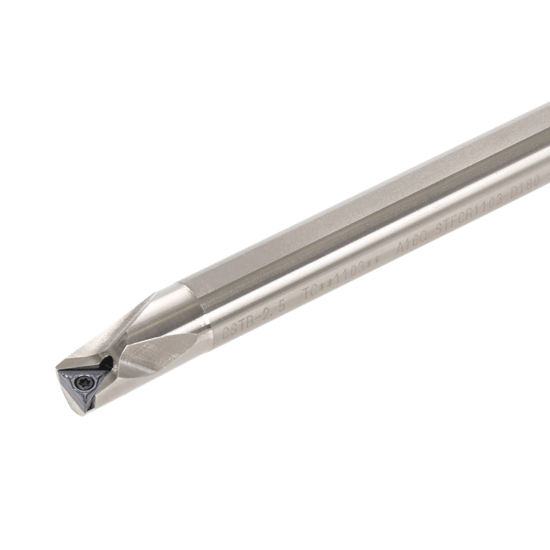

Picture of TUNGALOY A16Q-STFCR1103-D180 Boring Bar Triangle Insert Posi,F style, 91deg Approach , Steel Round 0.629 Shank

TUNGALOY A16Q-STFCR1103-D180 Boring Bar Triangle Insert Posi,F style, 91deg Approach , Steel Round 0.629 Shank

ANSI: A16Q-STFCR1103-D180

ISO: A16Q-STFCR1103-D180

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864792
Delivery date: 3-5 days
$194.70

Important Notes

Posi,F style, 91deg Approach

Details

Screw-on boring bars, for Posi triangle insert with 7 deg clearance

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Min Bore 0.7087
Insert Size Ic 11 "22"
Tool Material Steel
Shank/Pilot Dia 0.6299 16.00MM
Lead Angle 91°
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Insert Style TC
