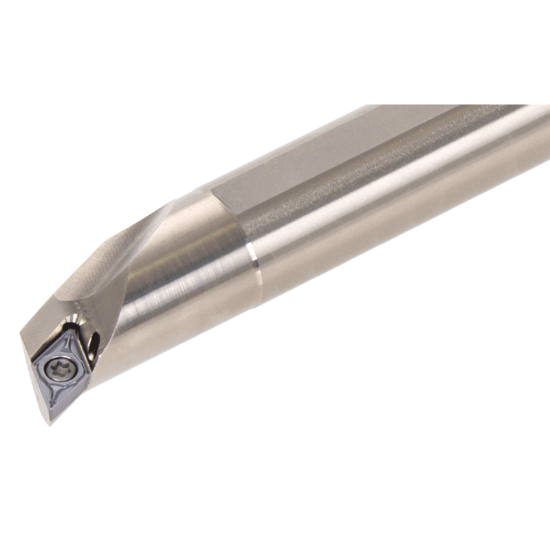

Picture of TUNGALOY A12M-SDQPL07-D150-P Boring Bar 55.0° Insert Posi,Q style,107.5deg Approach , Steel Round 0.472 Shank

TUNGALOY A12M-SDQPL07-D150-P Boring Bar 55.0° Insert Posi,Q style,107.5deg Approach , Steel Round 0.472 Shank

ANSI: A12M-SDQPL07-D150-P

ISO: A12M-SDQPL07-D150-P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6762768
Delivery date: 3-5 days
$158.70

Important Notes

Posi,Q style,107.5deg Approach

Details

Screw-on boring bars, for Posi 55deg rhombic insert with 11 deg clearance

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Tool Material Steel
Lead Angle 107.5°
Machine Side Connection Type Boring Bar
Overall Len 5.9055 150.00MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 07 "21"
Clearance Angle 15.5°
Shank/Pilot Dia 0.4724 12.00MM
Min Bore 0.5906
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DP
Hand R/L Left
Inter/Extern Internal
