  • TUNGALOY A08H-SEXPL04-D055 Boring Bar 75.0° Insert Posi,X style, 100deg Approach , Steel Round 0.315 Shank

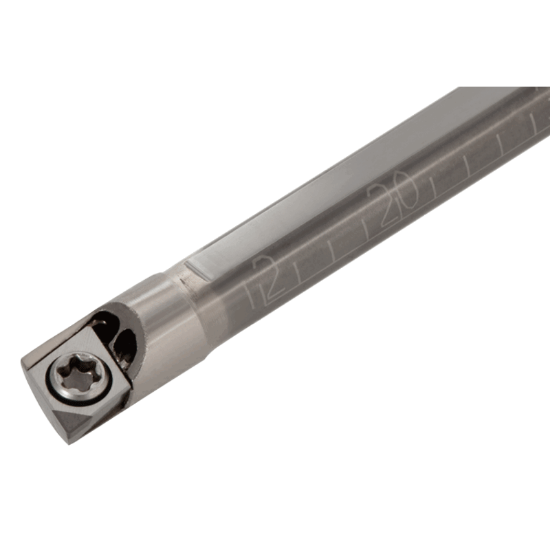

Picture of TUNGALOY A08H-SEXPL04-D055 Boring Bar 75.0° Insert Posi,X style, 100deg Approach , Steel Round 0.315 Shank

TUNGALOY A08H-SEXPL04-D055 Boring Bar 75.0° Insert Posi,X style, 100deg Approach , Steel Round 0.315 Shank

ANSI: A08H-SEXPL04-D055

ISO: A08H-SEXPL04-D055

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6848850
Delivery date: 3-5 days
$158.70

Important Notes

Posi,X style, 100deg Approach

Details

Screw-on boring bars, for Posi 75deg rhombic insert with 11deg clearance

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Int.Turning
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 04 "52"
Shank/Pilot Dia 0.3150 8.00MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Min Bore 0.2165
Lead Angle 100°
Machine Side Connection Size 0.3150 8.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 75.0°
Insert Style EP
Inter/Extern Internal
