  • TUNGALOY A04F-SEZPR03-D055 Boring Bar 75.0° Insert Posi,Z style, 93deg Approach , Steel Boring Bar 0.157 Shank

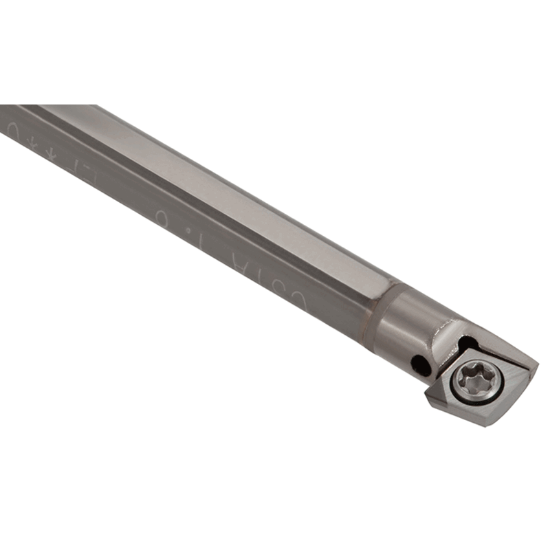

Picture of TUNGALOY A04F-SEZPR03-D055 Boring Bar 75.0° Insert Posi,Z style, 93deg Approach , Steel Boring Bar 0.157 Shank

TUNGALOY A04F-SEZPR03-D055 Boring Bar 75.0° Insert Posi,Z style, 93deg Approach , Steel Boring Bar 0.157 Shank

ANSI: A04F-SEZPR03-D055

ISO: A04F-SEZPR03-D055

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6862248
Delivery date: 3-5 days
$176.10

Important Notes

Posi,Z style, 93deg Approach

Details

Screw-on boring bars, for Posi 75deg rhombic insert with 11deg clearance

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Int.Turning, Back Turning
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Lead Angle 95° B
Machine Side Connection Type Boring Bar
Insert Size Ic 03 "4.5"
Tool Material Steel
Machine Side Connection Size 0.1575 4.00MM
Min Bore 0.2165
Shank/Pilot Dia 0.1575 4.00MM
Clearance Angle 11.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 75.0°
Insert Style EP
Inter/Extern Internal
