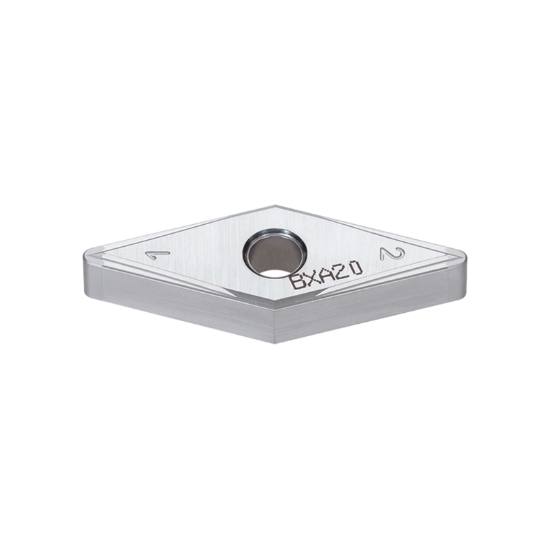

Picture of TUNGALOY 4QS-VNGG332-HM BXA20 Insert 35.0° T-CBN 0.031 Corner Radius

TUNGALOY 4QS-VNGG332-HM BXA20 Insert 35.0° T-CBN 0.031 Corner Radius

ANSI: 4QS-VNGG332-HM BXA20

ISO: 4QS-VNGG160408 HM BXA20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776238
Delivery date: 3-5 days
$139.23

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Negative relief ang., G class, 35deg rhombic CBN insert with chipbreaker, applied "WavyJoint" brazing technology

File Downloads

DXFSTPSTPL

Grade and Coating Description

Coated T-CBN for excellent performance in machining hardened steel

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Illinois
Insert/Tool Insert
Insert Type Negative
Application Turning Insert
Made In USA No
Package Size 10
Coating T-CBN
Grade BXA20
Dimensional Specifications
Insert Size Ic 16 "33"
Corner Radius 0.0310 0.79MM
Cut Rating <65HRC Steel
Cutting & Machining Properties
Insert Style VN
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 35.0°
