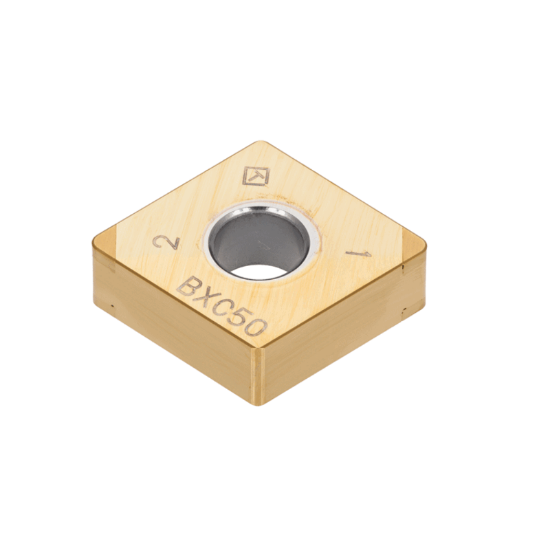

Picture of TUNGALOY 4QP-CNMA431 BXC50 Insert 80.0° TiN 0.016 Corner Radius

TUNGALOY 4QP-CNMA431 BXC50 Insert 80.0° TiN 0.016 Corner Radius

ANSI: 4QP-CNMA431 BXC50

ISO: 4QP-CNMA120404 BXC50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822271
Delivery date: 3-5 days
$129.05

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Negative relief ang., M/G class, 80deg rhombic CBN insert

Grade and Coating Description

Coated T-CBN Grades for medium to high speeds, hard metals and cast iron

Products specifications
Attribute name Attribute value
General Product Information
Grade BXC50
Package Size 10
Insert Application Finishing
Coating TiN
Shipping State Illinois
Insert Type Negative
Application Turning Insert
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Cut Rating <65HRC Steel, Gray Iron
Corner Radius 0.0160 0.41MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
