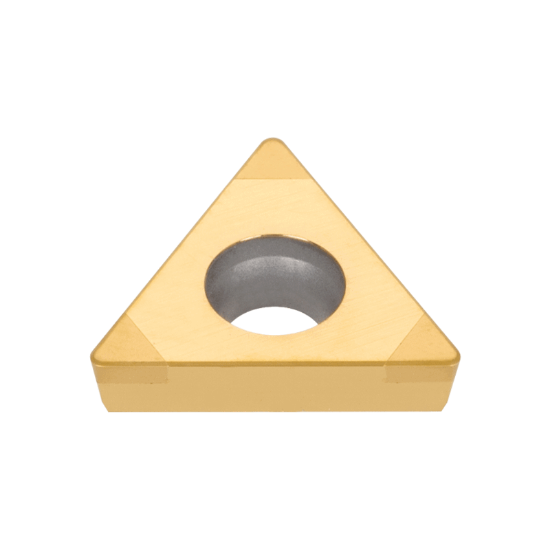

Picture of TUNGALOY 3QP-TPGW2.520.5 BXM20 Insert Triangle TiCN 0.008 Corner Radius

TUNGALOY 3QP-TPGW2.520.5 BXM20 Insert Triangle TiCN 0.008 Corner Radius

ANSI: 3QP-TPGW2.520.5 BXM20

ISO: 3QP-TPGW130102 BXM20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805211
Delivery date: 3-5 days
$107.38

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Positive 11deg relief ang., M/G class, triangular CBN insert

File Downloads

DXFSTPSTPL

Grade and Coating Description

Coated T-CBN for machining hardened steel in a wide range of application area

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert/Tool Insert
Coating TiCN
Grade BXM20
Package Size 10
Insert Application Finishing
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Rating <65HRC Steel, Gray Iron
Corner Radius 0.0080 0.20MM
Insert Size Ic 13 "2.5"
Cutting & Machining Properties
Insert Style TP
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 60.0°
