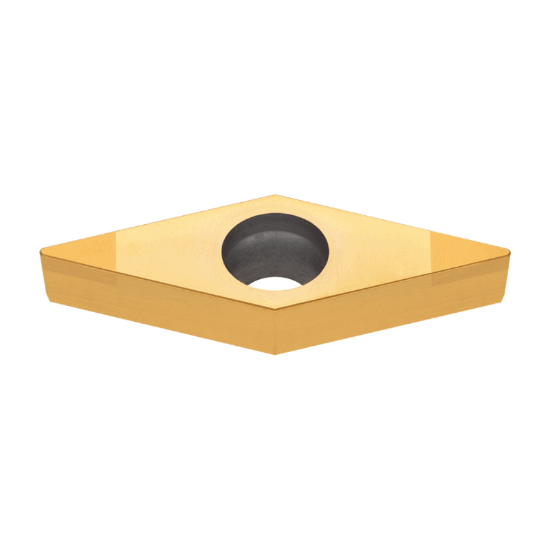

Picture of TUNGALOY 2QP-VCGW332-H BXA20 Insert 35.0° T-CBN 0.031 Corner Radius

TUNGALOY 2QP-VCGW332-H BXA20 Insert 35.0° T-CBN 0.031 Corner Radius

ANSI: 2QP-VCGW332-H BXA20

ISO: 2QP-VCGW160408 H BXA20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6791024
Delivery date: 3-5 days
$90.57

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Positive 7deg relief ang., M/G class, 35deg rhombic CBN insert

File Downloads

DXFSTPSTPL

Grade and Coating Description

Coated T-CBN for excellent performance in machining hardened steel

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Medium
Insert Type Positive
Insert/Tool Insert
Made In USA No
Shipping State Illinois
Coating T-CBN
Grade BXA20
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating <65HRC Steel
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat CBN
